Beskrivelse

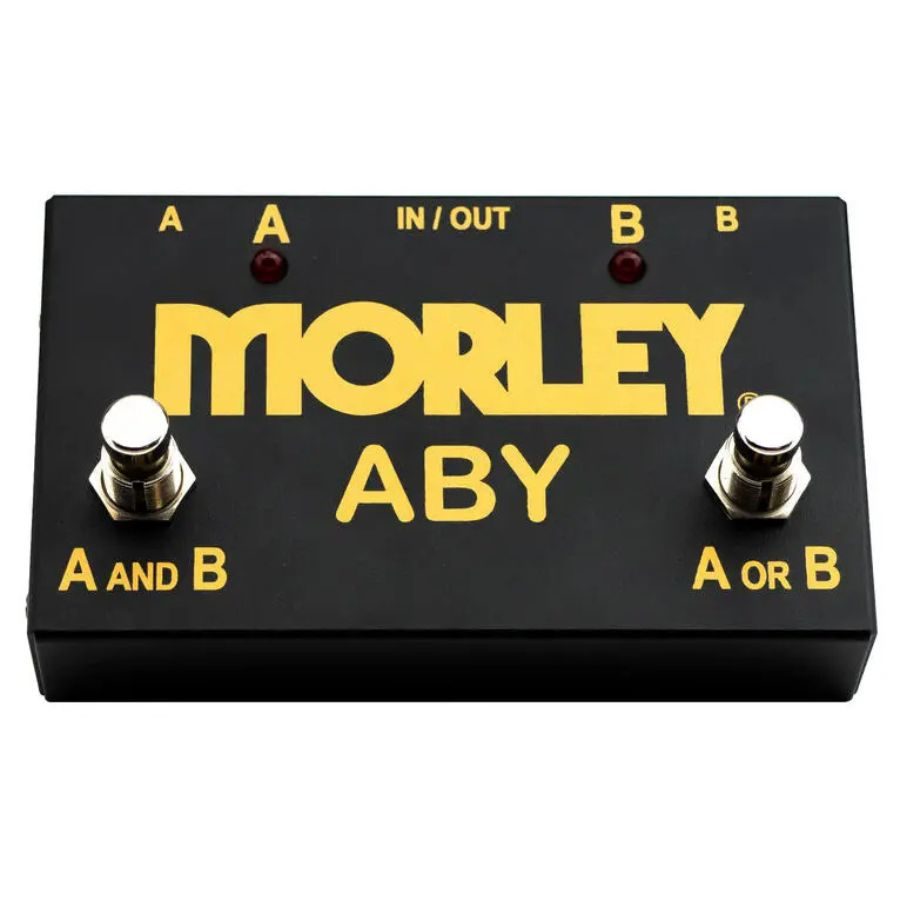

The Morley Gold Series switchers continue the legacy of the classic Morley switcher pedals that first have been introduced in the 90’s. The Gold Series versions retain the same layout with improved operation as well as an upgraded and quieter circuitry and a new classy look. The Morley ABY-G is a flexible A/B/Y switcher that allows musicians to route two inputs to one output or one input to two outputs.

A/B/Y switch for flexible signal routing
can be used as input or output selector
inputs and outputs can be used in both directions (one input to two selectable outputs or two selectable inputs to one output)
choose between A or B (separate) or A and B (combined)
true bypass
A and B, A or B footswitches
status LEDs
quick-clip battery door
cold-rolled steel housing

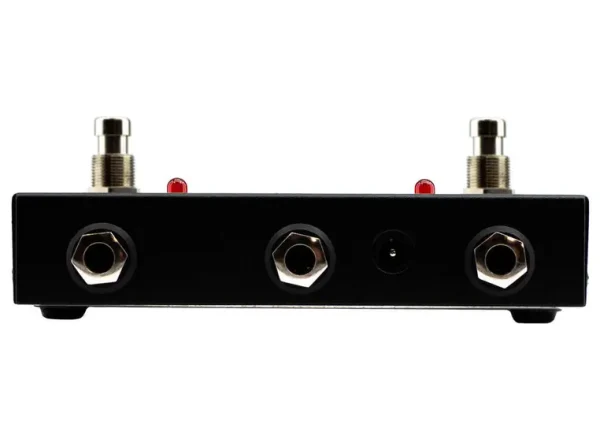

3x 6.3 mm mono input / output jack
power supply via 9V battery or optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
passive operation without power supply possible (status LEDs without function)
dimensions (L x W x H) 133 x 82 x 51 mm / 5.25 x 3.25 x 2
weight 390 g / 0.86 lbs
